ESP-NOW adapter for ESP platform. More...

#include <espnow_adapter.hpp>

Inheritance diagram for SPSP::LocalLayers::ESPNOW::Adapter:

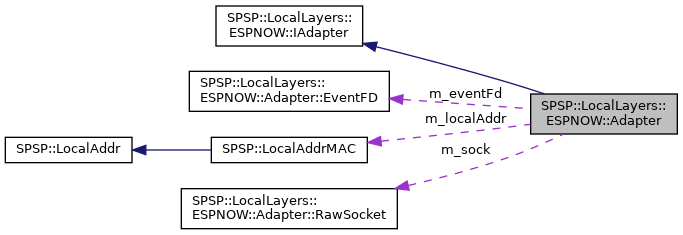

Collaboration diagram for SPSP::LocalLayers::ESPNOW::Adapter:

[legend]

Classes
struct	EventFD
	Wrapper of event file descriptor. More...

struct	RawSocket
	Wrapper of raw socket. More...

Public Member Functions
	Adapter ()
	Constructs a new ESP-NOW adapter. More...

	~Adapter ()
	Destroys the adapter. More...

void	setRecvCb (AdapterRecvCb cb) noexcept
	Sets receive callback. More...

AdapterRecvCb	getRecvCb () const noexcept
	Gets receive callback. More...

void	setSendCb (AdapterSendCb cb) noexcept
	Sets send callback. More...

AdapterSendCb	getSendCb () const noexcept
	Gets send callback. More...

void	send (const LocalAddrT &dst, const std::string &data)
	Sends local message. More...

void	addPeer (const LocalAddrT &peer)
	Adds peer to peer list. More...

void	removePeer (const LocalAddrT &peer)
	Removes peer from peer list. More...

	Adapter (const std::string &ifname)
	Constructs a new ESP-NOW adapter. More...

	~Adapter ()
	Destroys the adapter. More...

void	setRecvCb (AdapterRecvCb cb) noexcept
	Sets receive callback. More...

AdapterRecvCb	getRecvCb () const noexcept
	Gets receive callback. More...

void	setSendCb (AdapterSendCb cb) noexcept
	Sets send callback. More...

AdapterSendCb	getSendCb () const noexcept
	Gets send callback. More...

void	send (const LocalAddrT &dst, const std::string &data)
	Sends local message. More...

void	addPeer (const LocalAddrT &peer)
	Adds peer to peer list. More...

void	removePeer (const LocalAddrT &peer)
	Removes peer from peer list. More...

void	setRecvCb (AdapterRecvCb cb) noexcept
	Sets receive callback. More...

AdapterRecvCb	getRecvCb () const noexcept
	Gets receive callback. More...

void	setSendCb (AdapterSendCb cb) noexcept
	Sets send callback. More...

AdapterSendCb	getSendCb () const noexcept
	Gets send callback. More...

virtual void	send (const LocalAddrT &dst, const std::string &data) const
	Sends local message. More...

void	addPeer (const LocalAddrT &peer)
	Adds peer to peer list. More...

void	removePeer (const LocalAddrT &peer)
	Removes peer from peer list. More...

Protected Member Functions
void	handlerThread ()
	Function of thread handling incoming packets. More...

void	attachSocketFilter ()
	Attaches BPF filter to the socket. More...

void	processIEEE80211RawPacket (const uint8_t *data, size_t len)
	Processes incoming raw IEEE 802.11 packet. More...

bool	parseRadiotap (const uint8_t *data, size_t len, IEEE80211::RadiotapParsedFields &rpf)
	Parses radiotap header of IEEE 802.11 frame. More...

void	processIEEE80211RawAction (const uint8_t *data, size_t len, int rssi)
	Processes incoming raw IEEE 802.11 action frame. More...

void	processIEEE80211RawAck (const uint8_t *data, size_t len, int rssi)
	Processes incoming raw IEEE 802.11 acknowledgement. More...

Protected Attributes
RawSocket	m_sock
	Socket.

EventFD	m_eventFd
	Epoll event file descriptor.

int	m_epollFd
	Epoll file descriptor.

LocalAddrT	m_localAddr
	Cached local MAC address.

std::thread	m_thread
	Handler thread.

Detailed Description

ESP-NOW adapter for ESP platform.

ESP-NOW adapter for testing.

ESP-NOW adapter for Linux platform.

Low level API for ESP-NOW communication.

Implements IAdapter interface.

Only one ESPNOW instance can use this at a time and there may be only one Adapter instance at a time.

Low level API for ESP-NOW communication.

Implements IAdapter interface.

Definition at line 30 of file espidf/spsp/espnow_adapter.hpp.

Constructor & Destructor Documentation

◆ Adapter() [1/2]

SPSP::LocalLayers::ESPNOW::Adapter::Adapter ( )

Constructs a new ESP-NOW adapter.

Exceptions

AdapterError when any call to underlaying library fails

◆ ~Adapter() [1/2]

SPSP::LocalLayers::ESPNOW::Adapter::~Adapter ( )

Destroys the adapter.

◆ Adapter() [2/2]

SPSP::LocalLayers::ESPNOW::Adapter::Adapter ( const std::string & ifname )

Constructs a new ESP-NOW adapter.

Starts packet capture on 802.11 interface identified by ifname.

Parameters

ifname Interface name (must be in monitor mode)

Exceptions

AdapterError when any call to underlaying library fails

◆ ~Adapter() [2/2]

SPSP::LocalLayers::ESPNOW::Adapter::~Adapter ( )

Destroys the adapter.

Member Function Documentation

◆ addPeer() [1/3]

void SPSP::LocalLayers::ESPNOW::Adapter::addPeer ( const LocalAddrT & peer )

inlinevirtual

Adds peer to peer list.

Parameters

peer	Peer address

Exceptions

AdapterError when peer can't be added

Implements SPSP::LocalLayers::ESPNOW::IAdapter.

Definition at line 93 of file testing/spsp/espnow_adapter.hpp.

◆ addPeer() [2/3]

void SPSP::LocalLayers::ESPNOW::Adapter::addPeer ( const LocalAddrT & peer )

virtual

Adds peer to peer list.

Parameters

peer	Peer address

Exceptions

AdapterError when peer can't be added

Implements SPSP::LocalLayers::ESPNOW::IAdapter.

◆ addPeer() [3/3]

void SPSP::LocalLayers::ESPNOW::Adapter::addPeer ( const LocalAddrT & peer )

inlinevirtual

Adds peer to peer list.

Doesn't do anything on Linux plaform.

Parameters

peer	Peer address

Implements SPSP::LocalLayers::ESPNOW::IAdapter.

Definition at line 131 of file linux/spsp/espnow_adapter.hpp.

◆ attachSocketFilter()

void SPSP::LocalLayers::ESPNOW::Adapter::attachSocketFilter ( )

protected

Attaches BPF filter to the socket.

Exceptions

AdapterError when any call to underlaying library fails

◆ getRecvCb() [1/3]

AdapterRecvCb SPSP::LocalLayers::ESPNOW::Adapter::getRecvCb ( ) const

inlinenoexcept

Gets receive callback.

Parameters

cb Callback

Definition at line 48 of file testing/spsp/espnow_adapter.hpp.

◆ getRecvCb() [2/3]

AdapterRecvCb SPSP::LocalLayers::ESPNOW::Adapter::getRecvCb ( ) const

noexcept

Gets receive callback.

Parameters

cb Callback

◆ getRecvCb() [3/3]

AdapterRecvCb SPSP::LocalLayers::ESPNOW::Adapter::getRecvCb ( ) const

inlinenoexcept

Gets receive callback.

Parameters

cb Callback

Definition at line 96 of file linux/spsp/espnow_adapter.hpp.

◆ getSendCb() [1/3]

AdapterSendCb SPSP::LocalLayers::ESPNOW::Adapter::getSendCb ( ) const

inlinenoexcept

Gets send callback.

Parameters

cb Callback

Definition at line 68 of file testing/spsp/espnow_adapter.hpp.

◆ getSendCb() [2/3]

AdapterSendCb SPSP::LocalLayers::ESPNOW::Adapter::getSendCb ( ) const

noexcept

Gets send callback.

Parameters

cb Callback

◆ getSendCb() [3/3]

AdapterSendCb SPSP::LocalLayers::ESPNOW::Adapter::getSendCb ( ) const

inlinenoexcept

Gets send callback.

Parameters

cb Callback

Definition at line 110 of file linux/spsp/espnow_adapter.hpp.

◆ handlerThread()

void SPSP::LocalLayers::ESPNOW::Adapter::handlerThread ( )

protected

Function of thread handling incoming packets.

◆ parseRadiotap()

bool SPSP::LocalLayers::ESPNOW::Adapter::parseRadiotap	(	const uint8_t *	data,
		size_t	len,
		IEEE80211::RadiotapParsedFields &	rpf
	)

protected

Parses radiotap header of IEEE 802.11 frame.

Parameters

data	Raw data
len	Data length
rpf	Parsed radiotap fields. Those not present are left unmodified!

Returns: true If the header is valid; false If the header is invalid

◆ processIEEE80211RawAck()

void SPSP::LocalLayers::ESPNOW::Adapter::processIEEE80211RawAck	(	const uint8_t *	data,
		size_t	len,
		int	rssi
	)

protected

Processes incoming raw IEEE 802.11 acknowledgement.

Parameters

data	Raw data
len	Data length
rssi	Received signal strength indicator (in dBm)

◆ processIEEE80211RawAction()

void SPSP::LocalLayers::ESPNOW::Adapter::processIEEE80211RawAction	(	const uint8_t *	data,
		size_t	len,
		int	rssi
	)

protected

Processes incoming raw IEEE 802.11 action frame.

Parameters

data	Raw data
len	Data length
rssi	Received signal strength indicator (in dBm)

◆ processIEEE80211RawPacket()

void SPSP::LocalLayers::ESPNOW::Adapter::processIEEE80211RawPacket	(	const uint8_t *	data,
		size_t	len
	)

protected

Processes incoming raw IEEE 802.11 packet.

Parameters

data	Raw data
len	Data length

◆ removePeer() [1/3]

void SPSP::LocalLayers::ESPNOW::Adapter::removePeer ( const LocalAddrT & peer )

virtual

Removes peer from peer list.

Parameters

peer	Peer address

Exceptions

AdapterError when peer can't be removed

Implements SPSP::LocalLayers::ESPNOW::IAdapter.

◆ removePeer() [2/3]

void SPSP::LocalLayers::ESPNOW::Adapter::removePeer ( const LocalAddrT & peer )

inlinevirtual

Removes peer from peer list.

Parameters

peer	Peer address

Exceptions

AdapterError when peer can't be removed

Implements SPSP::LocalLayers::ESPNOW::IAdapter.

Definition at line 104 of file testing/spsp/espnow_adapter.hpp.

◆ removePeer() [3/3]

void SPSP::LocalLayers::ESPNOW::Adapter::removePeer ( const LocalAddrT & peer )

inlinevirtual

Removes peer from peer list.

Doesn't do anything on Linux plaform.

Parameters

peer	Peer address

Implements SPSP::LocalLayers::ESPNOW::IAdapter.

Definition at line 140 of file linux/spsp/espnow_adapter.hpp.

◆ send() [1/3]

void SPSP::LocalLayers::ESPNOW::Adapter::send	(	const LocalAddrT &	dst,
		const std::string &	data
	)

virtual

Sends local message.

Parameters

dst	Destination address
data	Raw data to be sent

Exceptions

AdapterError when call to send function fails (not when packet undelivered)

Implements SPSP::LocalLayers::ESPNOW::IAdapter.

◆ send() [2/3]

void SPSP::LocalLayers::ESPNOW::Adapter::send	(	const LocalAddrT &	dst,
		const std::string &	data
	)

virtual

Sends local message.

Injects IEEE 802.11 packet onto the packet capture interface.

Parameters

dst	Destination address
data	Raw data to be sent

Exceptions

AdapterError when call to send function fails (not when packet undelivered)

Implements SPSP::LocalLayers::ESPNOW::IAdapter.

◆ send() [3/3]

virtual void SPSP::LocalLayers::ESPNOW::Adapter::send	(	const LocalAddrT &	dst,
		const std::string &	data
	)		const

inlinevirtual

Sends local message.

Parameters

dst	Destination address
data	Raw data to be sent

Exceptions

AdapterError when call to send function fails (not when packet undelivered)

Definition at line 81 of file testing/spsp/espnow_adapter.hpp.

◆ setRecvCb() [1/3]

void SPSP::LocalLayers::ESPNOW::Adapter::setRecvCb ( AdapterRecvCb cb )

inlinevirtualnoexcept

Sets receive callback.

Callback should be called in new thread.

Parameters

cb Callback

Implements SPSP::LocalLayers::ESPNOW::IAdapter.

Definition at line 38 of file testing/spsp/espnow_adapter.hpp.

◆ setRecvCb() [2/3]

void SPSP::LocalLayers::ESPNOW::Adapter::setRecvCb ( AdapterRecvCb cb )

virtualnoexcept

Sets receive callback.

Callback should be called in new thread.

Parameters

cb Callback

Implements SPSP::LocalLayers::ESPNOW::IAdapter.

◆ setRecvCb() [3/3]

void SPSP::LocalLayers::ESPNOW::Adapter::setRecvCb ( AdapterRecvCb cb )

inlinevirtualnoexcept

Sets receive callback.

Callback should be called in new thread.

Parameters

cb Callback

Implements SPSP::LocalLayers::ESPNOW::IAdapter.

Definition at line 89 of file linux/spsp/espnow_adapter.hpp.

◆ setSendCb() [1/3]

void SPSP::LocalLayers::ESPNOW::Adapter::setSendCb ( AdapterSendCb cb )

inlinevirtualnoexcept

Sets send callback.

Parameters

cb Callback

Implements SPSP::LocalLayers::ESPNOW::IAdapter.

Definition at line 58 of file testing/spsp/espnow_adapter.hpp.

◆ setSendCb() [2/3]

void SPSP::LocalLayers::ESPNOW::Adapter::setSendCb ( AdapterSendCb cb )

virtualnoexcept

Sets send callback.

Parameters

cb Callback

Implements SPSP::LocalLayers::ESPNOW::IAdapter.

◆ setSendCb() [3/3]

void SPSP::LocalLayers::ESPNOW::Adapter::setSendCb ( AdapterSendCb cb )

inlinevirtualnoexcept

Sets send callback.

Parameters

cb Callback

Implements SPSP::LocalLayers::ESPNOW::IAdapter.

Definition at line 103 of file linux/spsp/espnow_adapter.hpp.

The documentation for this class was generated from the following file:

espidf/spsp/espnow_adapter.hpp

Classes

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Adapter() [1/2]

◆ ~Adapter() [1/2]

◆ Adapter() [2/2]

◆ ~Adapter() [2/2]

Member Function Documentation

◆ addPeer() [1/3]

◆ addPeer() [2/3]

◆ addPeer() [3/3]

◆ attachSocketFilter()

◆ getRecvCb() [1/3]

◆ getRecvCb() [2/3]

◆ getRecvCb() [3/3]

◆ getSendCb() [1/3]

◆ getSendCb() [2/3]

◆ getSendCb() [3/3]

◆ handlerThread()

◆ parseRadiotap()

◆ processIEEE80211RawAck()

◆ processIEEE80211RawAction()

◆ processIEEE80211RawPacket()

◆ removePeer() [1/3]

◆ removePeer() [2/3]

◆ removePeer() [3/3]

◆ send() [1/3]

◆ send() [2/3]

◆ send() [3/3]

◆ setRecvCb() [1/3]

◆ setRecvCb() [2/3]

◆ setRecvCb() [3/3]

◆ setSendCb() [1/3]

◆ setSendCb() [2/3]

◆ setSendCb() [3/3]
