ESP-NOW local layer. More...

#include <espnow.hpp>

Inheritance diagram for SPSP::LocalLayers::ESPNOW::ESPNOW:

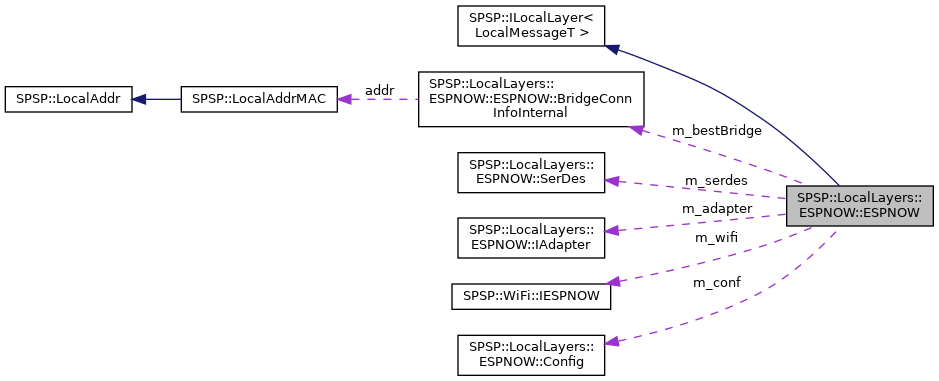

Collaboration diagram for SPSP::LocalLayers::ESPNOW::ESPNOW:

[legend]

Classes
struct	BridgeConnInfoInternal
	Internal bridge connection info. More...

Public Types
using	LocalAddrT = SPSP::LocalLayers::ESPNOW::LocalAddrT

using	LocalMessageT = SPSP::LocalLayers::ESPNOW::LocalMessageT

Public Types inherited from SPSP::ILocalLayer< LocalMessageT >
using	LocalAddrT = typename LocalMessageT ::LocalAddrT

using	LocalMessageT = LocalMessageT

Public Member Functions
	ESPNOW (IAdapter &adapter, WiFi::IESPNOW &wifi, const Config &conf)
	Constructs a new ESP-NOW layer object. More...

	~ESPNOW ()
	Destroys ESP-NOW layer object. More...

bool	send (const LocalMessageT &msg)
	Sends the message to given node. More...

bool	connectToBridge (BridgeConnInfoRTC rtndBr=nullptr, BridgeConnInfoRTC connBr=nullptr)
	Connects to the bridge. More...

Public Member Functions inherited from SPSP::ILocalLayer< LocalMessageT >
void	setNode (void *n)
	Sets pointer to the owner node. More...

ILocalNode< ILocalLayer > *	getNode () const
	Gets the node object. More...

bool	nodeConnected () const
	Checks whether the owner node is connected. More...

virtual bool	send (const LocalMessageT &msg)=0
	Sends the message to given node. More...

Protected Member Functions
void	receive (const LocalMessageT &msg, int rssi)
	Receive message handler. More...

void	sendRaw (const LocalAddrT &dst, const std::string &data)
	Sends raw packet to the underlaying library. More...

void	recvCb (const LocalAddrT src, std::string data, int rssi)
	Receive callback for underlaying ESP-NOW adapter. More...

void	sendCb (const LocalAddrT dst, bool delivered)
	Send callback for underlaying ESP-NOW adapter. More...

uint8_t	getBucketIdFromLocalAddr (const LocalAddrT &addr) const
	Calculates bucket id from `LocalAddrT` object. More...

Protected Attributes
std::mutex	m_mutex
	Mutex to prevent race conditions.

const Config	m_conf
	Configuration.

WiFi::IESPNOW &	m_wifi
	WiFi instance.

IAdapter &	m_adapter
	Low level ESP-NOW adapter.

SerDes	m_serdes
	Packet serializer/deserializer.

BridgeConnInfoInternal	m_bestBridge = {}
	Bridge with best signal.

std::mutex	m_bestBridgeMutex
	Mutex for modifying m_bestBridge* attributes.

std::array< std::promise< bool >, MAX_PEER_NUM >	m_sendingPromises
	Container for promises of being-sent messages. More...

std::array< std::mutex, MAX_PEER_NUM >	m_sendingMutexes
	Container for mutex of being-sent messages. More...

Detailed Description

ESP-NOW local layer.

Definition at line 54 of file espnow.hpp.

Constructor & Destructor Documentation

◆ ESPNOW()

SPSP::LocalLayers::ESPNOW::ESPNOW::ESPNOW	(	IAdapter &	adapter,
		WiFi::IESPNOW &	wifi,
		const Config &	conf
	)

Constructs a new ESP-NOW layer object.

Requires already initialized WiFi.

Parameters

adapter	ESP-NOW low-level adapter
wifi	WiFi instance
conf	Configuration

◆ ~ESPNOW()

SPSP::LocalLayers::ESPNOW::ESPNOW::~ESPNOW ( )

Destroys ESP-NOW layer object.

Member Function Documentation

◆ connectToBridge()

bool SPSP::LocalLayers::ESPNOW::ESPNOW::connectToBridge	(	BridgeConnInfoRTC *	rtndBr = `nullptr`,
		BridgeConnInfoRTC *	connBr = `nullptr`
	)

Connects to the bridge.

If rtndBr is not nullptr, uses it's address, returns true immediately, does no scan whatsoever and connBr = rtndBr. Otherwise probes all wireless channels (available in the currently configured country) and selects bridge with the best signal.

You can use retainedBridge and connectedBridge parameters to implement custom logic around deep-sleep reconnection without scans.

rtndBr and connBr may be the same pointers.

Automatically resubscribes to all topics.

Parameters

rtndBr	Retained bridge peer info (for reconnection)
connBr	Connected bridge peer info storage (if connection successful and `connBr` != nullptr)

Returns: true Connection successful; false Connection failed

◆ getBucketIdFromLocalAddr()

uint8_t SPSP::LocalLayers::ESPNOW::ESPNOW::getBucketIdFromLocalAddr ( const LocalAddrT & addr ) const

protected

Calculates bucket id from LocalAddrT object.

Used for m_sendingPromises and m_sendingMutexes arrays.

Parameters

addr	Address of the peer

Returns: Bucket id

◆ receive()

void SPSP::LocalLayers::ESPNOW::ESPNOW::receive	(	const LocalMessageT &	msg,
		int	rssi
	)

protected

Receive message handler.

Separate from recvCb to allow simpler testing.

Parameters

msg	Message
rssi	Received signal strength indicator (in dBm)

◆ recvCb()

void SPSP::LocalLayers::ESPNOW::ESPNOW::recvCb	(	const LocalAddrT	src,
		std::string	data,
		int	rssi
	)

protected

Receive callback for underlaying ESP-NOW adapter.

Parameters

src	Source address
data	Raw data
rssi	Received signal strength indicator (in dBm)

◆ send()

bool SPSP::LocalLayers::ESPNOW::ESPNOW::send ( const LocalMessageT & msg )

Sends the message to given node.

In the message, empty address means send to the bridge peer.

Note: this will block until delivery status is confirmed!

Parameters

msg Message

Returns: true Delivery successful; false Delivery failed

◆ sendCb()

void SPSP::LocalLayers::ESPNOW::ESPNOW::sendCb	(	const LocalAddrT	dst,
		bool	delivered
	)

protected

Send callback for underlaying ESP-NOW adapter.

Parameters

dst	Destination address
delivered	Whether packet has been delivered successfully

◆ sendRaw()

void SPSP::LocalLayers::ESPNOW::ESPNOW::sendRaw	(	const LocalAddrT &	dst,
		const std::string &	data
	)

protected

Sends raw packet to the underlaying library.

Also registers and unregisters the peer temporarily.

This is not multi-thread safe.

Parameters

dst	Destination address
data	Raw data

Member Data Documentation

◆ m_sendingMutexes

std::array<std::mutex, MAX_PEER_NUM> SPSP::LocalLayers::ESPNOW::ESPNOW::m_sendingMutexes

protected

Container for mutex of being-sent messages.

We need only one thread waiting for message status per bucket in m_sendingPromises. Efectively allows maximum of MAX_PEER_NUM messages being sent at the same time.

Definition at line 128 of file espnow.hpp.

◆ m_sendingPromises

std::array<std::promise<bool>, MAX_PEER_NUM> SPSP::LocalLayers::ESPNOW::ESPNOW::m_sendingPromises

protected

Container for promises of being-sent messages.

send() blocks until status of delivery is available (and no other message is being sent to the same node). Assign each peer a "bucket". When sending a message to other peer from the same bucket, wait for it to finish. Additional support for this mechanism is provided by m_sendingMutexes.

Definition at line 118 of file espnow.hpp.

The documentation for this class was generated from the following file:

espnow.hpp
