Generic local node of SPSP. More...

#include <node.hpp>

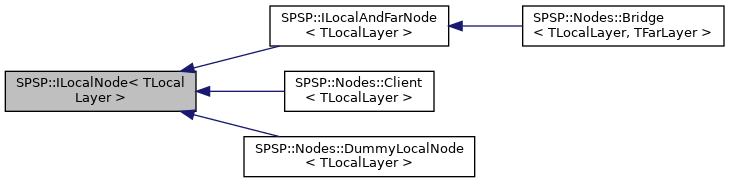

Inheritance diagram for SPSP::ILocalNode< TLocalLayer >:

[legend]

Public Member Functions
	ILocalNode (TLocalLayer *ll)
	Constructs a new node. More...

void	receiveLocal (const LocalMessageT &msg, int rssi=NODE_RSSI_UNKNOWN)
	Receives the message from local layer. More...

void	setLocalRecvSendCb (LocalRecvSendCb cb)
	Sets local receive/send callback function. More...

Protected Member Functions
TLocalLayer *	getLocalLayer () const
	Gets the far layer object. More...

bool	sendLocal (const LocalMessageT &msg)
	Sends the message to local layer. More...

void	publishRssi (const LocalAddrT &addr, int rssi)
	Publishes RSSI of received message from `addr` More...

virtual bool	processProbeReq (const LocalMessageT &req, int rssi=NODE_RSSI_UNKNOWN)=0
	Processes PROBE_REQ message. More...

virtual bool	processProbeRes (const LocalMessageT &req, int rssi=NODE_RSSI_UNKNOWN)=0
	Processes PROBE_RES message. More...

virtual bool	processPub (const LocalMessageT &req, int rssi=NODE_RSSI_UNKNOWN)=0
	Processes PUB message. More...

virtual bool	processSubReq (const LocalMessageT &req, int rssi=NODE_RSSI_UNKNOWN)=0
	Processes SUB_REQ message. More...

virtual bool	processSubData (const LocalMessageT &req, int rssi=NODE_RSSI_UNKNOWN)=0
	Processes SUB_DATA message. More...

virtual bool	processUnsub (const LocalMessageT &req, int rssi=NODE_RSSI_UNKNOWN)=0
	Processes UNSUB message. More...

virtual bool	processTimeReq (const LocalMessageT &req, int rssi=NODE_RSSI_UNKNOWN)=0
	Processes TIME_REQ message. More...

virtual bool	processTimeRes (const LocalMessageT &req, int rssi=NODE_RSSI_UNKNOWN)=0
	Processes TIME_RES message. More...

Detailed Description

template<typename TLocalLayer>
class SPSP::ILocalNode< TLocalLayer >

Generic local node of SPSP.

Template Parameters

TLocalLayer Type of local layer

Definition at line 17 of file layers.hpp.

Constructor & Destructor Documentation

◆ ILocalNode()

template<typename TLocalLayer >

SPSP::ILocalNode< TLocalLayer >::ILocalNode ( TLocalLayer * ll )

inline

Constructs a new node.

Definition at line 124 of file node.hpp.

Member Function Documentation

◆ getLocalLayer()

template<typename TLocalLayer >

TLocalLayer* SPSP::ILocalNode< TLocalLayer >::getLocalLayer ( ) const

inlineprotected

Gets the far layer object.

Returns: Far layer object

Definition at line 208 of file node.hpp.

◆ processProbeReq()

template<typename TLocalLayer >

virtual bool SPSP::ILocalNode< TLocalLayer >::processProbeReq	(	const LocalMessageT &	req,
		int	rssi = `NODE_RSSI_UNKNOWN`
	)

protectedpure virtual

Processes PROBE_REQ message.

Parameters

req	Request message
rssi	Received signal strength indicator (in dBm)

Returns: true Message delivery successful; false Message delivery failed

Implemented in SPSP::Nodes::Client< TLocalLayer >, SPSP::Nodes::Bridge< TLocalLayer, TFarLayer >, and SPSP::Nodes::DummyLocalNode< TLocalLayer >.

◆ processProbeRes()

template<typename TLocalLayer >

virtual bool SPSP::ILocalNode< TLocalLayer >::processProbeRes	(	const LocalMessageT &	req,
		int	rssi = `NODE_RSSI_UNKNOWN`
	)

protectedpure virtual

Processes PROBE_RES message.

Parameters

req	Request message
rssi	Received signal strength indicator (in dBm)

Returns: true Message delivery successful; false Message delivery failed

Implemented in SPSP::Nodes::Bridge< TLocalLayer, TFarLayer >, SPSP::Nodes::Client< TLocalLayer >, and SPSP::Nodes::DummyLocalNode< TLocalLayer >.

◆ processPub()

template<typename TLocalLayer >

virtual bool SPSP::ILocalNode< TLocalLayer >::processPub	(	const LocalMessageT &	req,
		int	rssi = `NODE_RSSI_UNKNOWN`
	)

protectedpure virtual

Processes PUB message.

Parameters

req	Request message
rssi	Received signal strength indicator (in dBm)

Returns: true Message delivery successful; false Message delivery failed

Implemented in SPSP::Nodes::Client< TLocalLayer >, SPSP::Nodes::Bridge< TLocalLayer, TFarLayer >, and SPSP::Nodes::DummyLocalNode< TLocalLayer >.

◆ processSubData()

template<typename TLocalLayer >

virtual bool SPSP::ILocalNode< TLocalLayer >::processSubData	(	const LocalMessageT &	req,
		int	rssi = `NODE_RSSI_UNKNOWN`
	)

protectedpure virtual

Processes SUB_DATA message.

Parameters

req	Request message
rssi	Received signal strength indicator (in dBm)

Returns: true Message delivery successful; false Message delivery failed

Implemented in SPSP::Nodes::Bridge< TLocalLayer, TFarLayer >, SPSP::Nodes::Client< TLocalLayer >, and SPSP::Nodes::DummyLocalNode< TLocalLayer >.

◆ processSubReq()

template<typename TLocalLayer >

virtual bool SPSP::ILocalNode< TLocalLayer >::processSubReq	(	const LocalMessageT &	req,
		int	rssi = `NODE_RSSI_UNKNOWN`
	)

protectedpure virtual

Processes SUB_REQ message.

Parameters

req	Request message
rssi	Received signal strength indicator (in dBm)

Returns: true Message delivery successful; false Message delivery failed

Implemented in SPSP::Nodes::Bridge< TLocalLayer, TFarLayer >, SPSP::Nodes::Client< TLocalLayer >, and SPSP::Nodes::DummyLocalNode< TLocalLayer >.

◆ processTimeReq()

template<typename TLocalLayer >

virtual bool SPSP::ILocalNode< TLocalLayer >::processTimeReq	(	const LocalMessageT &	req,
		int	rssi = `NODE_RSSI_UNKNOWN`
	)

protectedpure virtual

Processes TIME_REQ message.

Parameters

req	Request message
rssi	Received signal strength indicator (in dBm)

Returns: true Message delivery successful; false Message delivery failed

Implemented in SPSP::Nodes::Bridge< TLocalLayer, TFarLayer >, SPSP::Nodes::Client< TLocalLayer >, and SPSP::Nodes::DummyLocalNode< TLocalLayer >.

◆ processTimeRes()

template<typename TLocalLayer >

virtual bool SPSP::ILocalNode< TLocalLayer >::processTimeRes	(	const LocalMessageT &	req,
		int	rssi = `NODE_RSSI_UNKNOWN`
	)

protectedpure virtual

Processes TIME_RES message.

Parameters

req	Request message
rssi	Received signal strength indicator (in dBm)

Returns: true Message delivery successful; false Message delivery failed

Implemented in SPSP::Nodes::Bridge< TLocalLayer, TFarLayer >, SPSP::Nodes::Client< TLocalLayer >, and SPSP::Nodes::DummyLocalNode< TLocalLayer >.

◆ processUnsub()

template<typename TLocalLayer >

virtual bool SPSP::ILocalNode< TLocalLayer >::processUnsub	(	const LocalMessageT &	req,
		int	rssi = `NODE_RSSI_UNKNOWN`
	)

protectedpure virtual

Processes UNSUB message.

Parameters

req	Request message
rssi	Received signal strength indicator (in dBm)

Returns: true Message delivery successful; false Message delivery failed

Implemented in SPSP::Nodes::Bridge< TLocalLayer, TFarLayer >, SPSP::Nodes::Client< TLocalLayer >, and SPSP::Nodes::DummyLocalNode< TLocalLayer >.

◆ publishRssi()

template<typename TLocalLayer >

void SPSP::ILocalNode< TLocalLayer >::publishRssi	(	const LocalAddrT &	addr,
		int	rssi
	)

inlineprotected

Publishes RSSI of received message from addr

Doesn't block and doesn't check delivery status. If rssi is NODE_RSSI_UNKNOWN, doesn't do anything.

Parameters

rssi	Received signal strength indicator (in dBm)

Definition at line 250 of file node.hpp.

◆ receiveLocal()

template<typename TLocalLayer >

void SPSP::ILocalNode< TLocalLayer >::receiveLocal	(	const LocalMessageT &	msg,
		int	rssi = `NODE_RSSI_UNKNOWN`
	)

inline

Receives the message from local layer.

Acts as a callback for local layer receiver.

Parameters

msg	Received message
rssi	Received signal strength indicator (in dBm)

Definition at line 137 of file node.hpp.

◆ sendLocal()

template<typename TLocalLayer >

bool SPSP::ILocalNode< TLocalLayer >::sendLocal ( const LocalMessageT & msg )

inlineprotected

Sends the message to local layer.

Parameters

msg	Message to send

Returns: true Message delivery successful; false Message delivery failed

Definition at line 220 of file node.hpp.

◆ setLocalRecvSendCb()

template<typename TLocalLayer >

void SPSP::ILocalNode< TLocalLayer >::setLocalRecvSendCb ( LocalRecvSendCb cb )

inline

Sets local receive/send callback function.

May be used to blink LEDs, compute statistics, etc.

Don't do any long action inside the callback! If you need to perform long blocking operation, spawn yourself a new thread.

Parameters

cb	Callback (if `nullptr`, unsets the callback)

Definition at line 197 of file node.hpp.

The documentation for this class was generated from the following files:
