#include <bridge.hpp>

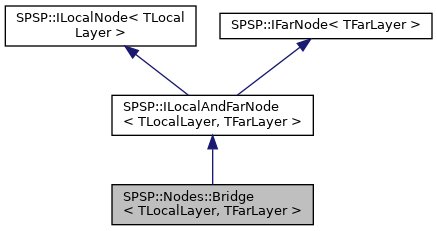

Inheritance diagram for SPSP::Nodes::Bridge< TLocalLayer, TFarLayer >:

[legend]

Collaboration diagram for SPSP::Nodes::Bridge< TLocalLayer, TFarLayer >:

[legend]

Classes
struct	SubDBEntry
	Bridge subscribe entry. More...

Public Types
using	LocalAddrT = typename TLocalLayer::LocalAddrT

using	LocalMessageT = typename TLocalLayer::LocalMessageT

Public Member Functions
	Bridge (TLocalLayer ll, TFarLayer fl, BridgeConfig conf={})
	Construct a new bridge object. More...

	~Bridge ()
	Destroys the bridge node. More...

bool	receiveFar (const std::string &topic, const std::string &payload)
	Receives the message from far layer. More...

bool	publish (const std::string &topic, const std::string &payload)
	Publishes payload to topic. More...

bool	subscribe (const std::string &topic, SubscribeCb cb)
	Subscribes to topic. More...

void	resubscribeAll ()
	Resubscribes to all topics. More...

bool	unsubscribe (const std::string &topic)
	Unsubscribes from topic. More...

Public Member Functions inherited from SPSP::ILocalAndFarNode< TLocalLayer, TFarLayer >
	ILocalAndFarNode (TLocalLayer ll, TFarLayer fl)
	Constructs a new node. More...

Public Member Functions inherited from SPSP::ILocalNode< TLocalLayer >
	ILocalNode (TLocalLayer *ll)
	Constructs a new node. More...

void	receiveLocal (const LocalMessageT &msg, int rssi=NODE_RSSI_UNKNOWN)
	Receives the message from local layer. More...

void	setLocalRecvSendCb (LocalRecvSendCb cb)
	Sets local receive/send callback function. More...

Public Member Functions inherited from SPSP::IFarNode< TFarLayer >
	IFarNode (TFarLayer *fl)
	Constructs a new node. More...

Protected Types
using	SubDBMapT = std::unordered_map< LocalAddrT, SubDBEntry >

Protected Member Functions
bool	processProbeReq (const LocalMessageT &req, int rssi=NODE_RSSI_UNKNOWN)
	Processes PROBE_REQ message. More...

bool	processProbeRes (const LocalMessageT &req, int rssi=NODE_RSSI_UNKNOWN)
	Processes PROBE_RES message. More...

bool	processPub (const LocalMessageT &req, int rssi=NODE_RSSI_UNKNOWN)
	Processes PUB message. More...

bool	processSubReq (const LocalMessageT &req, int rssi=NODE_RSSI_UNKNOWN)
	Processes SUB_REQ message. More...

bool	processSubData (const LocalMessageT &req, int rssi=NODE_RSSI_UNKNOWN)
	Processes SUB_DATA message. More...

bool	processUnsub (const LocalMessageT &req, int rssi=NODE_RSSI_UNKNOWN)
	Processes UNSUB message. More...

bool	processTimeReq (const LocalMessageT &req, int rssi=NODE_RSSI_UNKNOWN)
	Processes TIME_REQ message. More...

bool	processTimeRes (const LocalMessageT &req, int rssi=NODE_RSSI_UNKNOWN)
	Processes TIME_RES message. More...

bool	publishSubData (const LocalAddrT &addr, const std::string &topic, const std::string &payload)
	Publishes received subscription data to local layer node. More...

void	subDBTick ()
	Subscribe DB timer tick callback. More...

void	subDBDecrementLifetimes ()
	Decrements lifetimes of entries. More...

void	subDBRemoveExpiredEntries ()
	Removes expired entries. More...

void	subDBRemoveUnusedTopics ()
	Removes and unsubscribes from unused topics. More...

Protected Member Functions inherited from SPSP::ILocalNode< TLocalLayer >
TLocalLayer *	getLocalLayer () const
	Gets the far layer object. More...

bool	sendLocal (const LocalMessageT &msg)
	Sends the message to local layer. More...

void	publishRssi (const LocalAddrT &addr, int rssi)
	Publishes RSSI of received message from `addr` More...

Protected Member Functions inherited from SPSP::IFarNode< TFarLayer >
TFarLayer *	getFarLayer () const
	Gets the far layer object. More...

Protected Attributes
std::mutex	m_mutex
	Mutex to prevent race conditions.

BridgeConfig	m_conf
	Configuration.

WildcardTrie< SubDBMapT >	m_subDB
	Subscribe database.

Timer	m_subDBTimer
	Sub DB timer.

Detailed Description

template<typename TLocalLayer, typename TFarLayer>
class SPSP::Nodes::Bridge< TLocalLayer, TFarLayer >

Bridge node.

It is necessary to have synchronized clock with outside world before bridge construction (from SNTP server), because bridge serves time to clients.

Template Parameters

TLocalLayer	Type of local layer
TFarLayer	Type of far layer

Definition at line 82 of file bridge.hpp.

Constructor & Destructor Documentation

◆ Bridge()

template<typename TLocalLayer , typename TFarLayer >

SPSP::Nodes::Bridge< TLocalLayer, TFarLayer >::Bridge	(	TLocalLayer *	ll,
		TFarLayer *	fl,
		BridgeConfig	conf = `{}`
	)

inline

Construct a new bridge object.

Parameters

ll	Local layer
fl	Far layer
conf	Configuration

Definition at line 117 of file bridge.hpp.

◆ ~Bridge()

template<typename TLocalLayer , typename TFarLayer >

SPSP::Nodes::Bridge< TLocalLayer, TFarLayer >::~Bridge ( )

inline

Destroys the bridge node.

Definition at line 131 of file bridge.hpp.

Member Function Documentation

◆ processProbeReq()

template<typename TLocalLayer , typename TFarLayer >

bool SPSP::Nodes::Bridge< TLocalLayer, TFarLayer >::processProbeReq	(	const LocalMessageT &	req,
		int	rssi = `NODE_RSSI_UNKNOWN`
	)

inlineprotectedvirtual

Processes PROBE_REQ message.

Parameters

req	Request message
rssi	Received signal strength indicator (in dBm)

Returns: true Message delivery successful; false Message delivery failed

Implements SPSP::ILocalNode< TLocalLayer >.

Definition at line 301 of file bridge.hpp.

◆ processProbeRes()

template<typename TLocalLayer , typename TFarLayer >

bool SPSP::Nodes::Bridge< TLocalLayer, TFarLayer >::processProbeRes	(	const LocalMessageT &	req,
		int	rssi = `NODE_RSSI_UNKNOWN`
	)

inlineprotectedvirtual

Processes PROBE_RES message.

Doesn't do anything.

Parameters

req	Request message
rssi	Received signal strength indicator (in dBm)

Returns: true Message delivery successful; false Message delivery failed

Implements SPSP::ILocalNode< TLocalLayer >.

Definition at line 336 of file bridge.hpp.

◆ processPub()

template<typename TLocalLayer , typename TFarLayer >

bool SPSP::Nodes::Bridge< TLocalLayer, TFarLayer >::processPub	(	const LocalMessageT &	req,
		int	rssi = `NODE_RSSI_UNKNOWN`
	)

inlineprotectedvirtual

Processes PUB message.

Parameters

req	Request message
rssi	Received signal strength indicator (in dBm)

Returns: true Message delivery successful; false Message delivery failed

Implements SPSP::ILocalNode< TLocalLayer >.

Definition at line 347 of file bridge.hpp.

◆ processSubData()

template<typename TLocalLayer , typename TFarLayer >

bool SPSP::Nodes::Bridge< TLocalLayer, TFarLayer >::processSubData	(	const LocalMessageT &	req,
		int	rssi = `NODE_RSSI_UNKNOWN`
	)

inlineprotectedvirtual

Processes SUB_DATA message.

Doesn't do anything.

Parameters

req	Request message
rssi	Received signal strength indicator (in dBm)

Returns: true Message delivery successful; false Message delivery failed

Implements SPSP::ILocalNode< TLocalLayer >.

Definition at line 416 of file bridge.hpp.

◆ processSubReq()

template<typename TLocalLayer , typename TFarLayer >

bool SPSP::Nodes::Bridge< TLocalLayer, TFarLayer >::processSubReq	(	const LocalMessageT &	req,
		int	rssi = `NODE_RSSI_UNKNOWN`
	)

inlineprotectedvirtual

Processes SUB_REQ message.

Parameters

req	Request message
rssi	Received signal strength indicator (in dBm)

Returns: true Message delivery successful; false Message delivery failed

Implements SPSP::ILocalNode< TLocalLayer >.

Definition at line 372 of file bridge.hpp.

◆ processTimeReq()

template<typename TLocalLayer , typename TFarLayer >

bool SPSP::Nodes::Bridge< TLocalLayer, TFarLayer >::processTimeReq	(	const LocalMessageT &	req,
		int	rssi = `NODE_RSSI_UNKNOWN`
	)

inlineprotectedvirtual

Processes TIME_REQ message.

Responds with TIME_RES message.

Parameters

req	Request message
rssi	Received signal strength indicator (in dBm)

Returns: true Message delivery successful; false Message delivery failed

Implements SPSP::ILocalNode< TLocalLayer >.

Definition at line 461 of file bridge.hpp.

◆ processTimeRes()

template<typename TLocalLayer , typename TFarLayer >

bool SPSP::Nodes::Bridge< TLocalLayer, TFarLayer >::processTimeRes	(	const LocalMessageT &	req,
		int	rssi = `NODE_RSSI_UNKNOWN`
	)

inlineprotectedvirtual

Processes TIME_RES message.

Doesn't do anything.

Parameters

req	Request message
rssi	Received signal strength indicator (in dBm)

Returns: true Message delivery successful; false Message delivery failed

Implements SPSP::ILocalNode< TLocalLayer >.

Definition at line 486 of file bridge.hpp.

◆ processUnsub()

template<typename TLocalLayer , typename TFarLayer >

bool SPSP::Nodes::Bridge< TLocalLayer, TFarLayer >::processUnsub	(	const LocalMessageT &	req,
		int	rssi = `NODE_RSSI_UNKNOWN`
	)

inlineprotectedvirtual

Processes UNSUB message.

Parameters

req	Request message
rssi	Received signal strength indicator (in dBm)

Returns: true Message delivery successful; false Message delivery failed

Implements SPSP::ILocalNode< TLocalLayer >.

Definition at line 427 of file bridge.hpp.

◆ publish()

template<typename TLocalLayer , typename TFarLayer >

bool SPSP::Nodes::Bridge< TLocalLayer, TFarLayer >::publish	(	const std::string &	topic,
		const std::string &	payload
	)

inline

Publishes payload to topic.

This is primary endpoint for publishing locally data on this node. Directly sends data to far layer.

Parameters

topic	Topic
payload	Payload

Returns: true Delivery successful; false Delivery failed

Definition at line 187 of file bridge.hpp.

◆ publishSubData()

template<typename TLocalLayer , typename TFarLayer >

bool SPSP::Nodes::Bridge< TLocalLayer, TFarLayer >::publishSubData	(	const LocalAddrT &	addr,
		const std::string &	topic,
		const std::string &	payload
	)

inlineprotected

Publishes received subscription data to local layer node.

Parameters

addr	Node address
topic	Topic
payload	Payload

Returns: true Message delivery successful; false Message delivery failed

Definition at line 498 of file bridge.hpp.

◆ receiveFar()

template<typename TLocalLayer , typename TFarLayer >

bool SPSP::Nodes::Bridge< TLocalLayer, TFarLayer >::receiveFar	(	const std::string &	topic,
		const std::string &	payload
	)

inlinevirtual

Receives the message from far layer.

Acts as a callback for far layer receiver.

Parameters

topic	Topic
payload	Payload (data)

Returns: true Message delivery successful; false Message delivery failed

Implements SPSP::IFarNode< TFarLayer >.

Definition at line 146 of file bridge.hpp.

◆ resubscribeAll()

template<typename TLocalLayer , typename TFarLayer >

void SPSP::Nodes::Bridge< TLocalLayer, TFarLayer >::resubscribeAll ( )

inline

Resubscribes to all topics.

Definition at line 244 of file bridge.hpp.

◆ subDBDecrementLifetimes()

template<typename TLocalLayer , typename TFarLayer >

void SPSP::Nodes::Bridge< TLocalLayer, TFarLayer >::subDBDecrementLifetimes ( )

inlineprotected

Decrements lifetimes of entries.

Definition at line 534 of file bridge.hpp.

◆ subDBRemoveExpiredEntries()

template<typename TLocalLayer , typename TFarLayer >

void SPSP::Nodes::Bridge< TLocalLayer, TFarLayer >::subDBRemoveExpiredEntries ( )

inlineprotected

Removes expired entries.

Definition at line 553 of file bridge.hpp.

◆ subDBRemoveUnusedTopics()

template<typename TLocalLayer , typename TFarLayer >

void SPSP::Nodes::Bridge< TLocalLayer, TFarLayer >::subDBRemoveUnusedTopics ( )

inlineprotected

Removes and unsubscribes from unused topics.

Definition at line 582 of file bridge.hpp.

◆ subDBTick()

template<typename TLocalLayer , typename TFarLayer >

void SPSP::Nodes::Bridge< TLocalLayer, TFarLayer >::subDBTick ( )

inlineprotected

Subscribe DB timer tick callback.

Decrements subscribe database lifetimes. Unsubscribes from unused topics.

Definition at line 519 of file bridge.hpp.

◆ subscribe()

template<typename TLocalLayer , typename TFarLayer >

bool SPSP::Nodes::Bridge< TLocalLayer, TFarLayer >::subscribe	(	const std::string &	topic,
		SubscribeCb	cb
	)

inline

Subscribes to topic.

This is primary endpoint for subscribing locally on this node. Directly forwards incoming data from far layer to given callback.

Parameters

topic	Topic
cb	Callback function

Returns: true Subscribe successful; false Subscribe failed

Definition at line 212 of file bridge.hpp.

◆ unsubscribe()

template<typename TLocalLayer , typename TFarLayer >

bool SPSP::Nodes::Bridge< TLocalLayer, TFarLayer >::unsubscribe ( const std::string & topic )

inline

Unsubscribes from topic.

This is primary endpoint for unsubscribing locally on this node.

Parameters

topic Topic

Returns: true Unsubscribe successful; false Unsubscribe failed

Definition at line 267 of file bridge.hpp.

The documentation for this class was generated from the following file:

bridge.hpp

Classes

Public Types

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

template<typename TLocalLayer, typename TFarLayer> class SPSP::Nodes::Bridge< TLocalLayer, TFarLayer >

Constructor & Destructor Documentation

◆ Bridge()

◆ ~Bridge()

Member Function Documentation

◆ processProbeReq()

◆ processProbeRes()

◆ processPub()

◆ processSubData()

◆ processSubReq()

◆ processTimeReq()

◆ processTimeRes()

◆ processUnsub()

◆ publish()

◆ publishSubData()

◆ receiveFar()

◆ resubscribeAll()

◆ subDBDecrementLifetimes()

◆ subDBRemoveExpiredEntries()

◆ subDBRemoveUnusedTopics()

◆ subDBTick()

◆ subscribe()

◆ unsubscribe()

template<typename TLocalLayer, typename TFarLayer>
class SPSP::Nodes::Bridge< TLocalLayer, TFarLayer >
