#include <client.hpp>

Inheritance diagram for SPSP::Nodes::Client< TLocalLayer >:

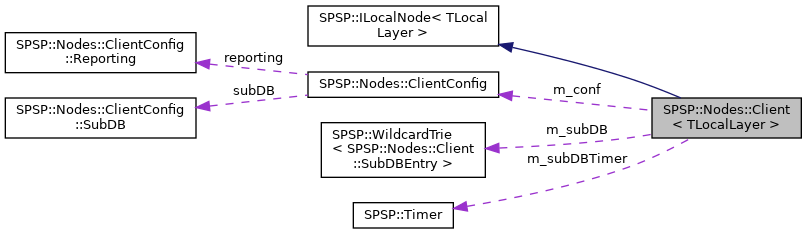

Collaboration diagram for SPSP::Nodes::Client< TLocalLayer >:

[legend]

Classes
struct	SubDBEntry
	Client subscribe database entry. More...

Public Types
using	LocalAddrT = typename TLocalLayer::LocalAddrT

using	LocalMessageT = typename TLocalLayer::LocalMessageT

Public Member Functions
	Client (TLocalLayer *ll, ClientConfig conf={})
	Constructs a new client node. More...

	~Client ()
	Destroys the client node. More...

bool	publish (const std::string &topic, const std::string &payload)
	Publishes payload to topic. More...

bool	subscribe (const std::string &topic, SubscribeCb cb)
	Subscribes to topic. More...

bool	unsubscribe (const std::string &topic)
	Unsubscribes from topic. More...

void	resubscribeAll ()
	Resubscribes to all topics. More...

bool	syncTime ()
	Synchronizes clock with bridge. More...

Public Member Functions inherited from SPSP::ILocalNode< TLocalLayer >
	ILocalNode (TLocalLayer *ll)
	Constructs a new node. More...

void	receiveLocal (const LocalMessageT &msg, int rssi=NODE_RSSI_UNKNOWN)
	Receives the message from local layer. More...

void	setLocalRecvSendCb (LocalRecvSendCb cb)
	Sets local receive/send callback function. More...

Protected Member Functions
bool	processProbeReq (const LocalMessageT &req, int rssi=NODE_RSSI_UNKNOWN)
	Processes PROBE_REQ message. More...

bool	processProbeRes (const LocalMessageT &req, int rssi=NODE_RSSI_UNKNOWN)
	Processes PROBE_RES message. More...

bool	processPub (const LocalMessageT &req, int rssi=NODE_RSSI_UNKNOWN)
	Processes PUB message. More...

bool	processSubReq (const LocalMessageT &req, int rssi=NODE_RSSI_UNKNOWN)
	Processes SUB_REQ message. More...

bool	processSubData (const LocalMessageT &req, int rssi=NODE_RSSI_UNKNOWN)
	Processes SUB_DATA message. More...

bool	processUnsub (const LocalMessageT &req, int rssi=NODE_RSSI_UNKNOWN)
	Processes UNSUB message. More...

bool	processTimeReq (const LocalMessageT &req, int rssi=NODE_RSSI_UNKNOWN)
	Processes TIME_REQ message. More...

bool	processTimeRes (const LocalMessageT &req, int rssi=NODE_RSSI_UNKNOWN)
	Processes TIME_RES message. More...

bool	sendSubscribe (const std::string &topic)
	Prepares and sends SUB_REQ message to local layer. More...

void	subDBTick ()
	Subscribe DB timer tick callback. More...

Protected Member Functions inherited from SPSP::ILocalNode< TLocalLayer >
TLocalLayer *	getLocalLayer () const
	Gets the far layer object. More...

bool	sendLocal (const LocalMessageT &msg)
	Sends the message to local layer. More...

void	publishRssi (const LocalAddrT &addr, int rssi)
	Publishes RSSI of received message from `addr` More...

Protected Attributes
std::mutex	m_mutex
	Mutex to prevent race conditions.

ClientConfig	m_conf
	Configuration.

WildcardTrie< SubDBEntry >	m_subDB
	Subscribe database.

Timer	m_subDBTimer
	Sub DB timer.

bool	m_timeSyncOngoing = false
	Whether time synchronization is ongoing.

std::promise< bool >	m_timeSyncPromise
	Time synchronization promise.

Detailed Description

template<typename TLocalLayer>
class SPSP::Nodes::Client< TLocalLayer >

Client node.

Template Parameters

TLocalLayer Type of local layer

Definition at line 77 of file client.hpp.

Constructor & Destructor Documentation

◆ Client()

template<typename TLocalLayer >

SPSP::Nodes::Client< TLocalLayer >::Client	(	TLocalLayer *	ll,
		ClientConfig	conf = `{}`
	)

inline

Constructs a new client node.

Parameters

ll	Local layer
conf	Configuration

Definition at line 108 of file client.hpp.

◆ ~Client()

template<typename TLocalLayer >

SPSP::Nodes::Client< TLocalLayer >::~Client ( )

inline

Destroys the client node.

Definition at line 120 of file client.hpp.

Member Function Documentation

◆ processProbeReq()

template<typename TLocalLayer >

bool SPSP::Nodes::Client< TLocalLayer >::processProbeReq	(	const LocalMessageT &	req,
		int	rssi = `NODE_RSSI_UNKNOWN`
	)

inlineprotectedvirtual

Processes PROBE_REQ message.

Doesn't do anything.

Parameters

req	Request message
rssi	Received signal strength indicator (in dBm)

Returns: true Message delivery successful; false Message delivery failed

Implements SPSP::ILocalNode< TLocalLayer >.

Definition at line 318 of file client.hpp.

◆ processProbeRes()

template<typename TLocalLayer >

bool SPSP::Nodes::Client< TLocalLayer >::processProbeRes	(	const LocalMessageT &	req,
		int	rssi = `NODE_RSSI_UNKNOWN`
	)

inlineprotectedvirtual

Processes PROBE_RES message.

Just publishes RSSI. This is handled internally by concrete local layer.

Parameters

req	Request message
rssi	Received signal strength indicator (in dBm)

Returns: true Message delivery successful; false Message delivery failed

Implements SPSP::ILocalNode< TLocalLayer >.

Definition at line 332 of file client.hpp.

◆ processPub()

template<typename TLocalLayer >

bool SPSP::Nodes::Client< TLocalLayer >::processPub	(	const LocalMessageT &	req,
		int	rssi = `NODE_RSSI_UNKNOWN`
	)

inlineprotectedvirtual

Processes PUB message.

Doesn't do anything.

Parameters

req	Request message
rssi	Received signal strength indicator (in dBm)

Returns: true Message delivery successful; false Message delivery failed

Implements SPSP::ILocalNode< TLocalLayer >.

Definition at line 351 of file client.hpp.

◆ processSubData()

template<typename TLocalLayer >

bool SPSP::Nodes::Client< TLocalLayer >::processSubData	(	const LocalMessageT &	req,
		int	rssi = `NODE_RSSI_UNKNOWN`
	)

inlineprotectedvirtual

Processes SUB_DATA message.

Parameters

req	Request message
rssi	Received signal strength indicator (in dBm)

Returns: true Message delivery successful; false Message delivery failed

Implements SPSP::ILocalNode< TLocalLayer >.

Definition at line 375 of file client.hpp.

◆ processSubReq()

template<typename TLocalLayer >

bool SPSP::Nodes::Client< TLocalLayer >::processSubReq	(	const LocalMessageT &	req,
		int	rssi = `NODE_RSSI_UNKNOWN`
	)

inlineprotectedvirtual

Processes SUB_REQ message.

Doesn't do anything.

Parameters

req	Request message
rssi	Received signal strength indicator (in dBm)

Returns: true Message delivery successful; false Message delivery failed

Implements SPSP::ILocalNode< TLocalLayer >.

Definition at line 364 of file client.hpp.

◆ processTimeReq()

template<typename TLocalLayer >

bool SPSP::Nodes::Client< TLocalLayer >::processTimeReq	(	const LocalMessageT &	req,
		int	rssi = `NODE_RSSI_UNKNOWN`
	)

inlineprotectedvirtual

Processes TIME_REQ message.

Doesn't do anything.

Parameters

req	Request message
rssi	Received signal strength indicator (in dBm)

Returns: true Message delivery successful; false Message delivery failed

Implements SPSP::ILocalNode< TLocalLayer >.

Definition at line 415 of file client.hpp.

◆ processTimeRes()

template<typename TLocalLayer >

bool SPSP::Nodes::Client< TLocalLayer >::processTimeRes	(	const LocalMessageT &	req,
		int	rssi = `NODE_RSSI_UNKNOWN`
	)

inlineprotectedvirtual

Processes TIME_RES message.

Synchronizes clock with time in received response.

Parameters

req	Request message
rssi	Received signal strength indicator (in dBm)

Returns: true Message delivery successful; false Message delivery failed

Implements SPSP::ILocalNode< TLocalLayer >.

Definition at line 428 of file client.hpp.

◆ processUnsub()

template<typename TLocalLayer >

bool SPSP::Nodes::Client< TLocalLayer >::processUnsub	(	const LocalMessageT &	req,
		int	rssi = `NODE_RSSI_UNKNOWN`
	)

inlineprotectedvirtual

Processes UNSUB message.

Parameters

req	Request message
rssi	Received signal strength indicator (in dBm)

Returns: true Message delivery successful; false Message delivery failed

Implements SPSP::ILocalNode< TLocalLayer >.

Definition at line 402 of file client.hpp.

◆ publish()

template<typename TLocalLayer >

bool SPSP::Nodes::Client< TLocalLayer >::publish	(	const std::string &	topic,
		const std::string &	payload
	)

inline

Publishes payload to topic.

This is primary endpoint for publishing locally data on this node. Sends data to the local layer.

Parameters

topic	Topic
payload	Payload

Returns: true Delivery successful; false Delivery failed

Definition at line 136 of file client.hpp.

◆ resubscribeAll()

template<typename TLocalLayer >

void SPSP::Nodes::Client< TLocalLayer >::resubscribeAll ( )

inline

Resubscribes to all topics.

Definition at line 241 of file client.hpp.

◆ sendSubscribe()

template<typename TLocalLayer >

bool SPSP::Nodes::Client< TLocalLayer >::sendSubscribe ( const std::string & topic )

inlineprotected

Prepares and sends SUB_REQ message to local layer.

Parameters

topic Topic

Returns: true Message delivery successful; false Message delivery failed

Definition at line 473 of file client.hpp.

◆ subDBTick()

template<typename TLocalLayer >

void SPSP::Nodes::Client< TLocalLayer >::subDBTick ( )

inlineprotected

Subscribe DB timer tick callback.

Decrements subscribe database lifetimes. If any item expires, renews it.

Definition at line 490 of file client.hpp.

◆ subscribe()

template<typename TLocalLayer >

bool SPSP::Nodes::Client< TLocalLayer >::subscribe	(	const std::string &	topic,
		SubscribeCb	cb
	)

inline

Subscribes to topic.

This is primary endpoint for subscribing locally on this node. Directly forwards incoming data from local layer to given callback. Subscribe request is sent to the bridge and extended automatically until unsubscribe() is called.

Parameters

topic	Topic
cb	Callback function

Returns: true Subscribe successful; false Subscribe failed

Definition at line 168 of file client.hpp.

◆ syncTime()

template<typename TLocalLayer >

bool SPSP::Nodes::Client< TLocalLayer >::syncTime ( )

inline

Synchronizes clock with bridge.

Returns: true Synchronization successful; false Synchronization failed

Definition at line 258 of file client.hpp.

◆ unsubscribe()

template<typename TLocalLayer >

bool SPSP::Nodes::Client< TLocalLayer >::unsubscribe ( const std::string & topic )

inline

Unsubscribes from topic.

This is primary endpoint for unsubscribing locally on this node.

Parameters

topic Topic

Returns: true Unsubscribe successful; false Unsubscribe failed

Definition at line 203 of file client.hpp.

The documentation for this class was generated from the following file:

client.hpp
